Description

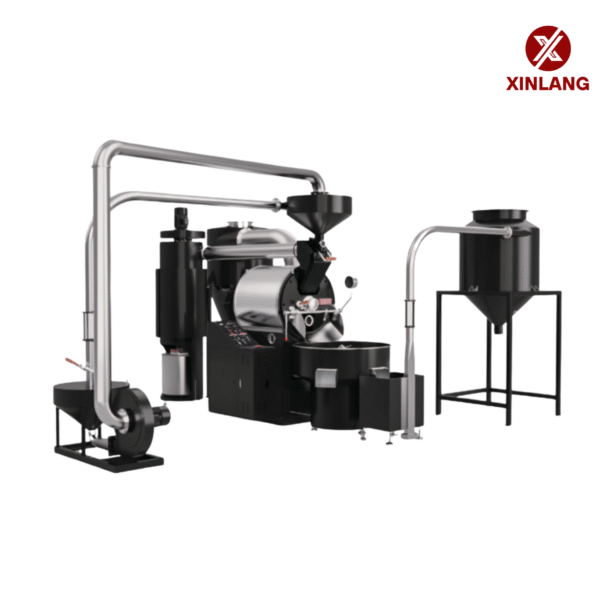

The Xinlang ACR-16 is a heavy-duty 30KG industrial coffee roasting machine designed for high-volume commercial roasting plants. It adopts semi-hot air and direct flame roasting technology, ensuring deep heat penetration, uniform bean development, and excellent flavor stability. With integrated feeding, cooling, and destoning systems, it is ideal for continuous large-scale production.
| Item | Specification |
|---|---|
| Model | ACR-16 |
| Product Name | 30KG Automatic Coffee Roasting Machine |
| Roasting Capacity | 30 KG per batch (15–35 KG adjustable) |
| Roasting Method | Semi-hot air + direct flame |
| Heating Type | LPG / Natural Gas |
| LPG Consumption | 4.8 kg/h (Max), Pressure: 4.0 KPa |
| Natural Gas Consumption | 6.5 m³/h (Max), Pressure: 4.0 KPa |
| Roasting Time | 8–15 minutes per batch |
| Hourly Output | 120–225 KG / hour |
| Voltage | Three-phase 380V, 50/60Hz |
| Total Power | 9 kW |
| Control System | Electronic temperature control with airflow regulation |
| Drum Structure | Thickened inner drum, uniform heat absorption |
| Cooling System | High-power cooling fan, rapid cooling |
| Safety System | Intelligent safety control with overheating protection |
| Airflow Control | Stepless adjustable air valve |
| Feeding System | Bean lifting system with heat-resistant conveyor |
| Destoner | Equipped with roasted-bean destoner |
| Machine Dimensions | 320 × 160 × 250 cm |
| Net Weight | Approx. 1850 KG |
| Body Color | Black |
| Finish Material | Stainless steel |
| Application | Industrial roasting plants, export production lines |
