Description

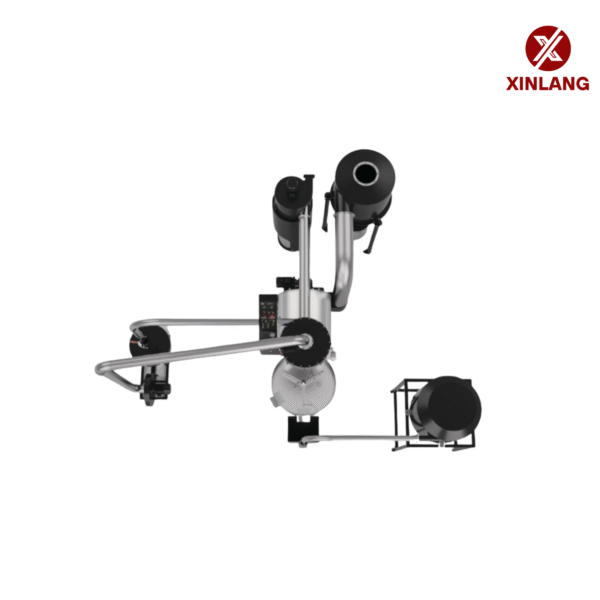

The Xinlang ACR-17 is a high-performance 40KG industrial coffee roasting machine developed for large-scale roasting factories and professional roasting centers. It integrates semi-hot air and direct flame roasting technology to deliver uniform heat transfer, deep flavor development, and high thermal efficiency. With heavy-duty construction and a complete roasting line configuration, it supports stable continuous production and consistent roast quality.
| Item | Specification |
|---|---|
| Model | ACR-17 |
| Product Name | 40KG Automatic Coffee Roasting Machine |
| Roasting Capacity | 40 KG per batch (20–45 KG adjustable) |
| Roasting Method | Semi-hot air + direct flame |
| Heating Type | LPG / Natural Gas |
| LPG Consumption | 8.1 kg/h (Max), Pressure: 4.0 KPa |
| Natural Gas Consumption | 11 m³/h (Max), Pressure: 4.0 KPa |
| Roasting Time | 8–15 minutes per batch |
| Hourly Output | 160–300 KG / hour |
| Voltage | Three-phase 380V, 50/60Hz |
| Total Power | 10 kW |
| Control System | Electronic temperature control with adjustable airflow |
| Drum Structure | Thickened inner drum for even heat distribution |
| Cooling System | High-power cooling fan with rapid cooling capability |
| Safety System | Intelligent safety control with over-temperature protection |
| Airflow Control | Stepless adjustable air valve |
| Feeding System | Automatic bean lifting and feeding system |
| Destoner | Equipped with roasted-bean destoner |
| Machine Dimensions | 340 × 160 × 300 cm |
| Net Weight | Approx. 2000 KG |
| Body Color | Black |
| Finish Material | Stainless steel |
| Application | Industrial coffee roasting factories, export-oriented production lines |
