Description

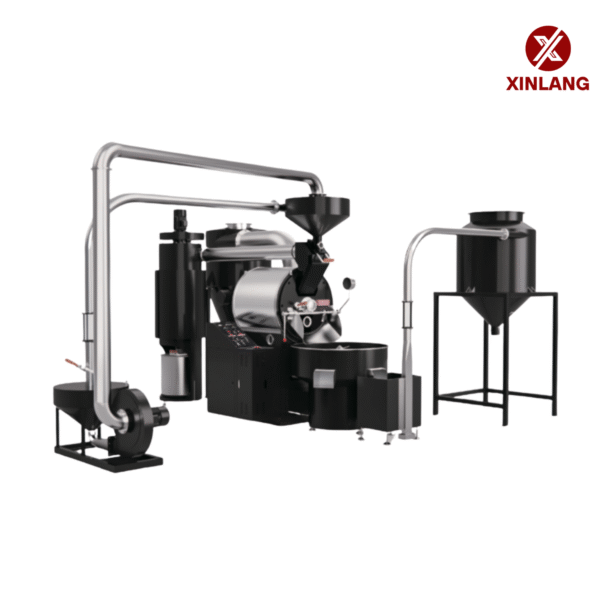

The Xinlang ACR-18 is a high-capacity 60KG industrial coffee roasting machine engineered for continuous, large-scale roasting operations. Using semi-hot air combined with direct flame roasting, it delivers deep heat penetration, uniform bean development, and high thermal efficiency. Its integrated feeding, cooling, and destoning systems make it ideal for export-grade production lines and professional roasting factories.
| Item | Specification |
|---|---|
| Model | ACR-18 |
| Product Name | 60KG Automatic Coffee Roasting Machine |
| Roasting Capacity | 60 KG per batch (30–65 KG adjustable) |
| Roasting Method | Semi-hot air + direct flame |
| Heating Type | LPG / Natural Gas |
| LPG Consumption | 9.0 kg/h (Max), Pressure: 4.0 KPa |
| Natural Gas Consumption | 12 m³/h (Max), Pressure: 4.0 KPa |
| Roasting Time | 8–15 minutes per batch |
| Hourly Output | 240–450 KG / hour |
| Voltage | Three-phase 380V, 50/60Hz |
| Total Power | 14 kW |
| Control System | Electronic temperature control with adjustable airflow |
| Drum Structure | Thickened inner drum for even heat absorption |
| Cooling System | High-power cooling fan with rapid cooling |
| Safety System | Intelligent safety control with overheating protection |
| Airflow Control | Stepless adjustable air valve |
| Feeding System | Automatic bean lifting and feeding system |
| Destoner | Equipped with roasted-bean destoner |
| Machine Dimensions | 380 × 190 × 340 cm |
| Net Weight | Approx. 2300 KG |
| Body Color | Black |
| Finish Material | Stainless steel |
| Application | Large industrial roasting factories, export production lines |
