Description
The XLGJ-10 Series Freeze Dryers are compact, laboratory-scale units suitable for small batch freeze-drying of flasks and vials. Each model features precise vacuum control, efficient cold traps, and adjustable shelf spacing to accommodate various lab containers. Ideal for research, quality control, and pilot-scale production of pharmaceuticals, chemicals, and food samples.
Technical Specifications

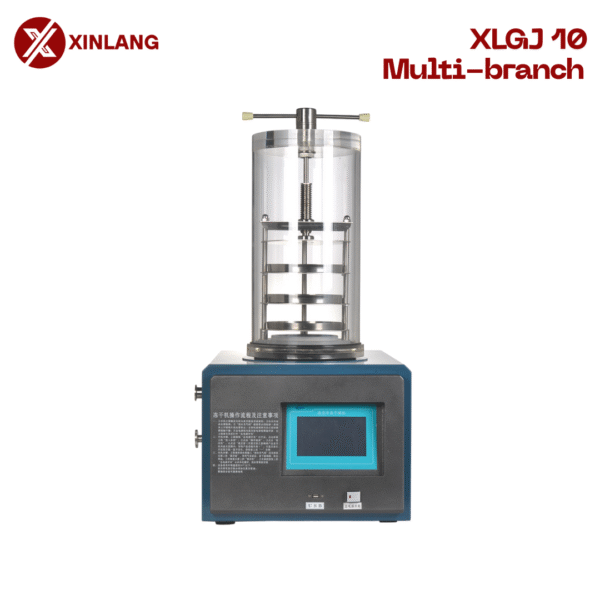

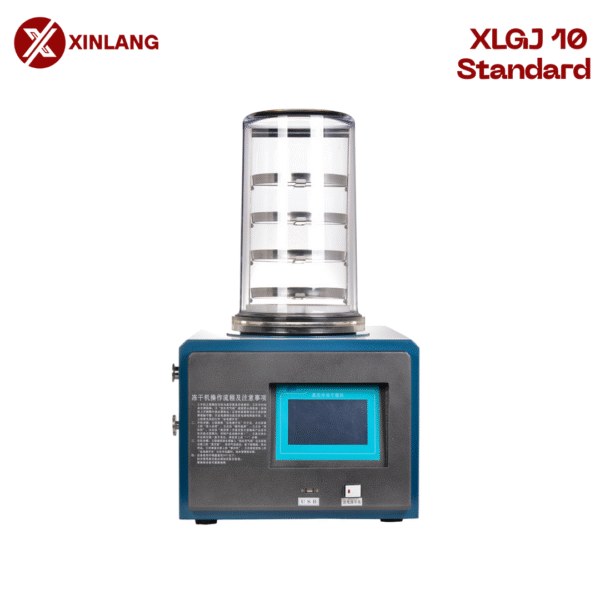

| Specification | XLGJ-10 Standard | XLGJ-10 Multi-branch | XLGJ-10 Stopper | XLGJ-10 Multi-branch Stopper |
|---|---|---|---|---|
| Freeze-drying Area | 0.1 m² | 0.08 m² | 0.1 m² | 0.08 m² |
| Cold Trap Temperature | -60°C (empty) | -60°C (empty), optional -80°C | -60°C (empty) | -60°C (empty), optional -80°C |
| Ultimate Vacuum | <5 Pa | <5 Pa | <5 Pa | <5 Pa |
| Pumping Speed | 2 L/s | 2 L/s | 2 L/s | 2 L/s |
| Water Capture Capacity | 3-4 kg/24h | 3-4 kg/24h | 3-4 kg/24h | 3-4 kg/24h |
| Shelf Diameter / Number | Ø180 mm, 4 shelves | Ø180 mm, 3 shelves | Ø180 mm, 4 shelves | Ø180 mm, 3 shelves |
| Shelf Spacing | 70 mm | 70 mm | 100 mm | 100 mm |
| Flask/Vial Capacity | 8 Erlenmeyer flasks (100, 150, 250, 500 ml ×2 each) | Same as standard | 8 Erlenmeyer flasks (100, 150, 250, 500 ml ×2 each) | Same as multi-branch |
| Vials (12/16/22 mm) | 920 / 480 / 260 | 560 / 285 / 165 | 920 / 480 / 260 | 560 / 285 / 165 |
| Power Supply | 220V ±10%, single-phase | 220V ±10% | 220V ±10%, single-phase | 220V ±10% |
| Machine Dimensions | 520×600×400 mm | 520×600×400 mm | 520×600×400 mm | 520×600×400 mm |
| Net Weight | 48 kg | 48 kg | 48 kg | 48 kg |
| Total Power | 950 W | 950 W | 950 W | 950 W |
